Latency and throughput are two fundamental concepts in computing and networking that play crucial roles in determining system performance.
I’ll delve into this as follows -
Introduction to Latency and Throughput
How It Works
Latency vs Throughput
How It Works with Application Example
Example: Web Server
Step-by-Step Process Flow
Platform Example
Platform Example: Online Shopping Website
Short Story Line: "The Busy Bakery"
Story Summary
Story Line
Latency vs Throughput Explained Using Specific Platforms
Latency Platforms
Pingdom
Datadog
Throughput Platforms
Grafana
Prometheus
Lets get started -
Latency refers to the time delay between the initiation of a request and the receipt of a response. It's essentially a measure of how long it takes for data to travel from its source to its destination. In simpler terms, latency is about speed and responsiveness.
Throughput, on the other hand, measures the amount of work or information flowing through a system in a given time period. It's often expressed as operations per second or data transferred per second. Throughput is about capacity and volume.
Thanks for reading Ignito! Subscribe for free to receive new posts and support my work.
Scenario: A web server handles incoming HTTP requests from users and serves web pages.
Latency:
Definition: The time taken for the server to respond to a single HTTP request. For example, if a user requests a web page, the latency is the time from when the user hits "Enter" until the page starts loading in their browser.
Impact: Lower latency means faster page loads and a better user experience.
Throughput:
Definition: The number of HTTP requests the server can handle per second. For example, if a server processes 500 requests per second, its throughput is 500 requests/sec.
Impact: Higher throughput means the server can handle more users or requests simultaneously.
Step-by-Step Process Flow
User Request:
A user sends a request to the server (e.g., accessing a webpage).
Request Arrival:
The server receives the request.
Request Processing:
The server processes the request:
Latency: Measure the time from receiving the request to sending a response.
Throughput: Measure how many requests the server processes in a given period.
Response Generation:
The server generates a response based on the request.
Response Sent:
The server sends the response back to the user.
Metrics Collection:
Collect data on:
Latency: Time taken for individual requests.
Throughput: Number of requests handled per second.
Platform Example: Online Shopping Website
Scenario: An online shopping website needs to handle thousands of user requests during a flash sale.
Latency Considerations:
Definition: How quickly can the website respond to a user’s actions? For instance, how fast can the website display search results after a user enters a query?
Implementation: To reduce latency, the website might use a Content Delivery Network (CDN) to cache static resources (like images and CSS files) closer to the user. They may also use fast database queries and optimize server performance to minimize the time taken to process requests.
Throughput Considerations:
Definition: How many requests can the website handle per second during peak times? For example, during a flash sale, the website must handle thousands of simultaneous requests for product searches, order placements, and payments.
Implementation: To improve throughput, the website might use load balancing to distribute incoming traffic across multiple servers. They might also employ horizontal scaling, where additional servers are added to handle more traffic, and optimize their database to handle high query loads.
Example Implementation:
Before Flash Sale:
Latency: Average response time is 200 ms.
Throughput: The website can handle 1000 requests per second.
During Flash Sale:
Latency: Response time might increase to 500 ms due to the high load. Measures like caching and database optimizations can help mitigate this.
Throughput: The system scales up to handle 10,000 requests per second by adding more servers and optimizing server configuration.
Platform Strategies:
Caching: Implementing caching mechanisms to store frequently accessed data and reduce the time required to generate responses.
Load Balancing: Distributing incoming requests across multiple servers to prevent any single server from becoming a bottleneck.
Database Optimization: Using faster queries and database indexing to handle high query loads efficiently.
Horizontal Scaling: Adding more servers to handle increased load during peak times.
Simplified Version —
Imagine a bakery that bakes and sells cookies. During a special event, the bakery gets very busy with lots of cookie orders. The bakery’s goal is to serve as many customers as quickly as possible while making sure each cookie is perfect.
Characters
Baker Benny: The main baker who makes delicious cookies.
Customer Cathy: A customer who orders cookies.
Helper Hannah: Benny’s helper who assists with orders.
Story Line
The Bakery Opens:
Baker Benny and Helper Hannah are ready to start baking cookies.
Customer Cathy arrives and places an order for cookies.
Cookie Making:
Baker Benny starts baking cookies for Cathy.
Latency: This is how long it takes Benny to bake and pack Cathy’s cookies. If Benny bakes quickly, the latency is low, meaning Cathy gets her cookies faster.
Serving More Customers:
As more customers arrive, Helper Hannah helps by taking orders and preparing more baking trays.
Throughput: This is the number of cookie orders Benny and Hannah can handle in an hour. If they handle lots of orders quickly, the throughput is high.
Special Event Time:
During a big event, lots of customers come in at once. Benny and Hannah need to make cookies fast to keep up with everyone’s orders.
Latency might increase because it takes more time to bake each order.
Throughput must be high to handle all the orders coming in.
Optimizing Cookie Making:
To keep up with the high demand, Benny and Hannah use extra ovens and baking trays. They also organize the bakery to make the cookie-making process faster.
Happy Customers:
By managing latency (making cookies quickly) and throughput (handling many orders), Benny and Hannah make sure all customers are happy and get their cookies as soon as possible.
1. Latency Platforms

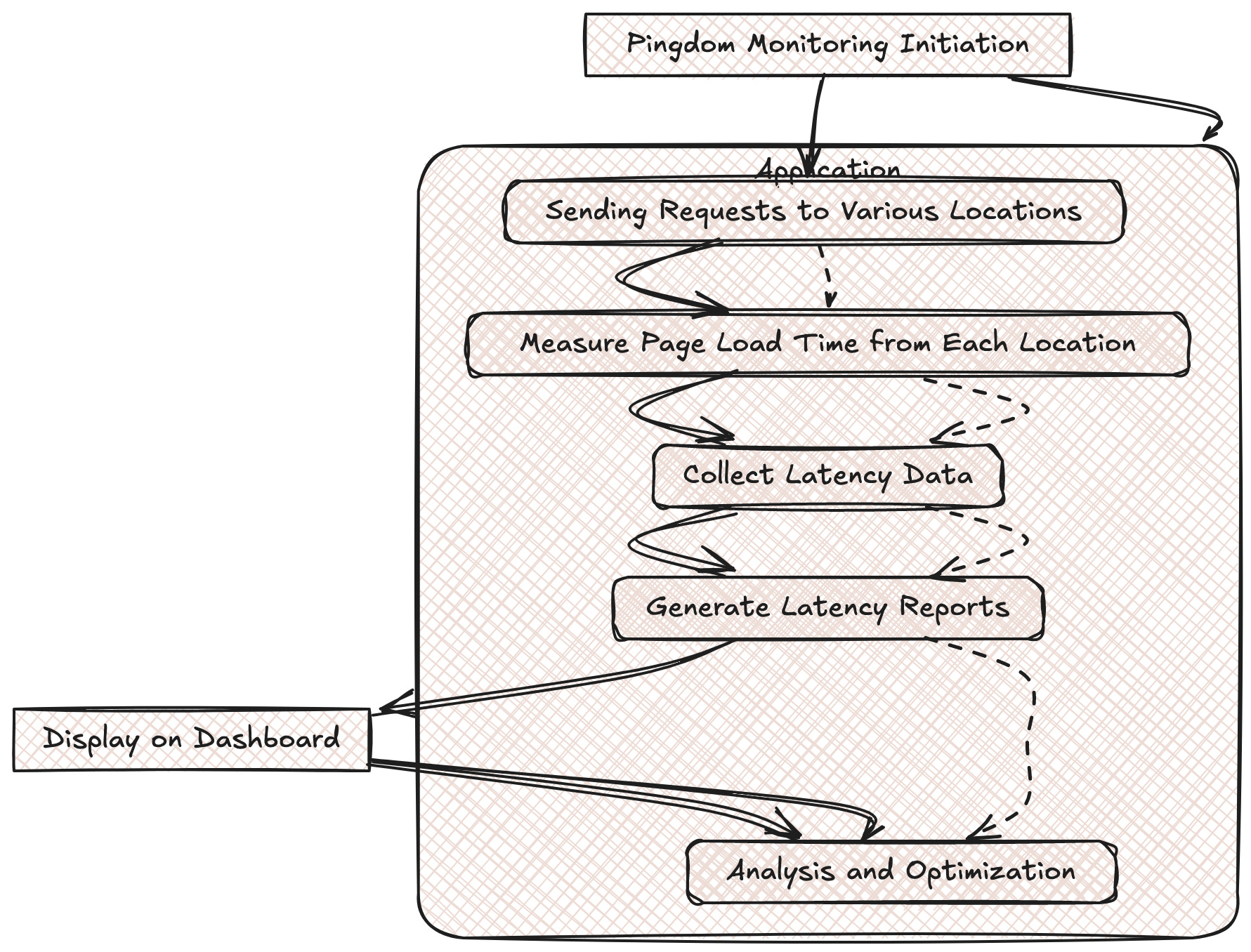

1.1. Pingdom
How It Works:
Pingdom is a web performance monitoring service that helps track the latency of websites by measuring how long it takes for a web page to load from various locations around the world.
Application Example:
When monitoring a website, Pingdom sends requests to the website from multiple geographic locations. It measures the time taken for the entire web page to load from each location. The collected latency data is then used to identify slow-loading regions or issues with the website's performance.
Step-by-Step Process Flow:
Request Initiation:
Pingdom initiates requests to the website from various locations.
Time Measurement:
It measures how long it takes for the website to load fully from each location.
Data Collection:
Latency data (time to load) is collected and averaged.
Reporting:
Reports are generated showing average, minimum, and maximum latency values.
Analysis:
Analyze the reports to identify slow regions and optimize the website accordingly.
1.2. Datadog
How It Works:
Datadog is an observability platform that monitors infrastructure performance, including latency for services, by collecting and analyzing various metrics from your applications and infrastructure.
Application Example:
Datadog tracks the latency of API responses or other service interactions within an application. It collects metrics on how long different services take to respond to requests and visualizes this data on dashboards.
Step-by-Step Process Flow:
Install Agents:
Datadog agents are installed on servers or within the application.
Metric Collection:
Metrics related to service response times (latency) are collected.
Data Aggregation:
Collected data is aggregated and stored.
Dashboard Creation:
Latency metrics are visualized on dashboards.
Alerting:
Alerts are set up to notify when latency exceeds acceptable thresholds.
2. Throughput Platforms

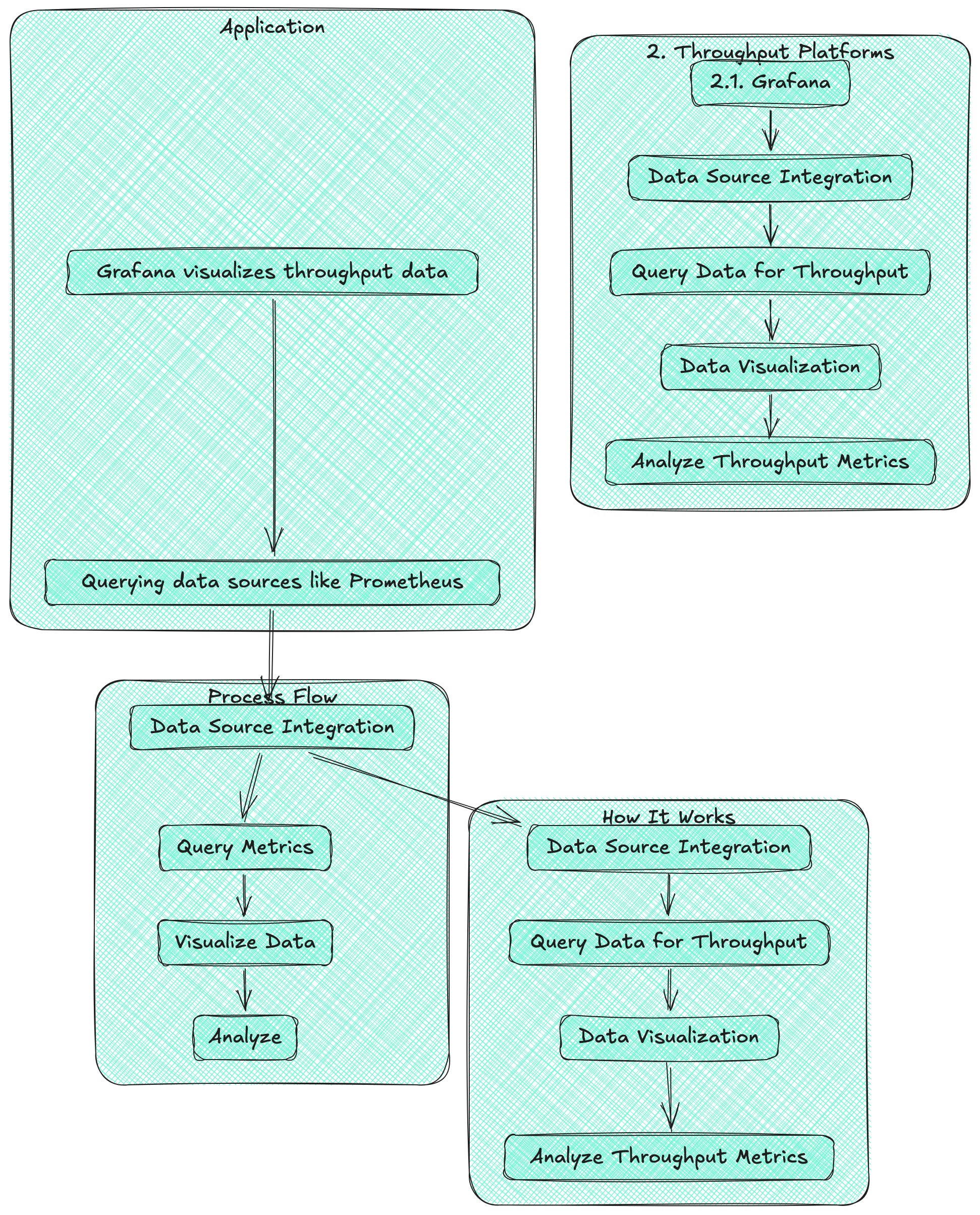

2.1. Grafana
How It Works:
Grafana is an open-source platform for monitoring and observability that visualizes metrics from various data sources. Throughput is one of the metrics Grafana can display by integrating with data sources like Prometheus.
Application Example:
Grafana visualizes throughput data, such as the number of requests per second to a web service, by querying data sources like Prometheus. This helps in understanding how many requests the service handles over time.
Step-by-Step Process Flow:
Data Source Integration:
Connect Grafana to data sources like Prometheus.
Query Metrics:
Query throughput metrics such as requests per second.
Visualize Data:
Display the throughput data on graphs and dashboards.
Analyze:
Use visualizations to analyze throughput and identify performance issues.

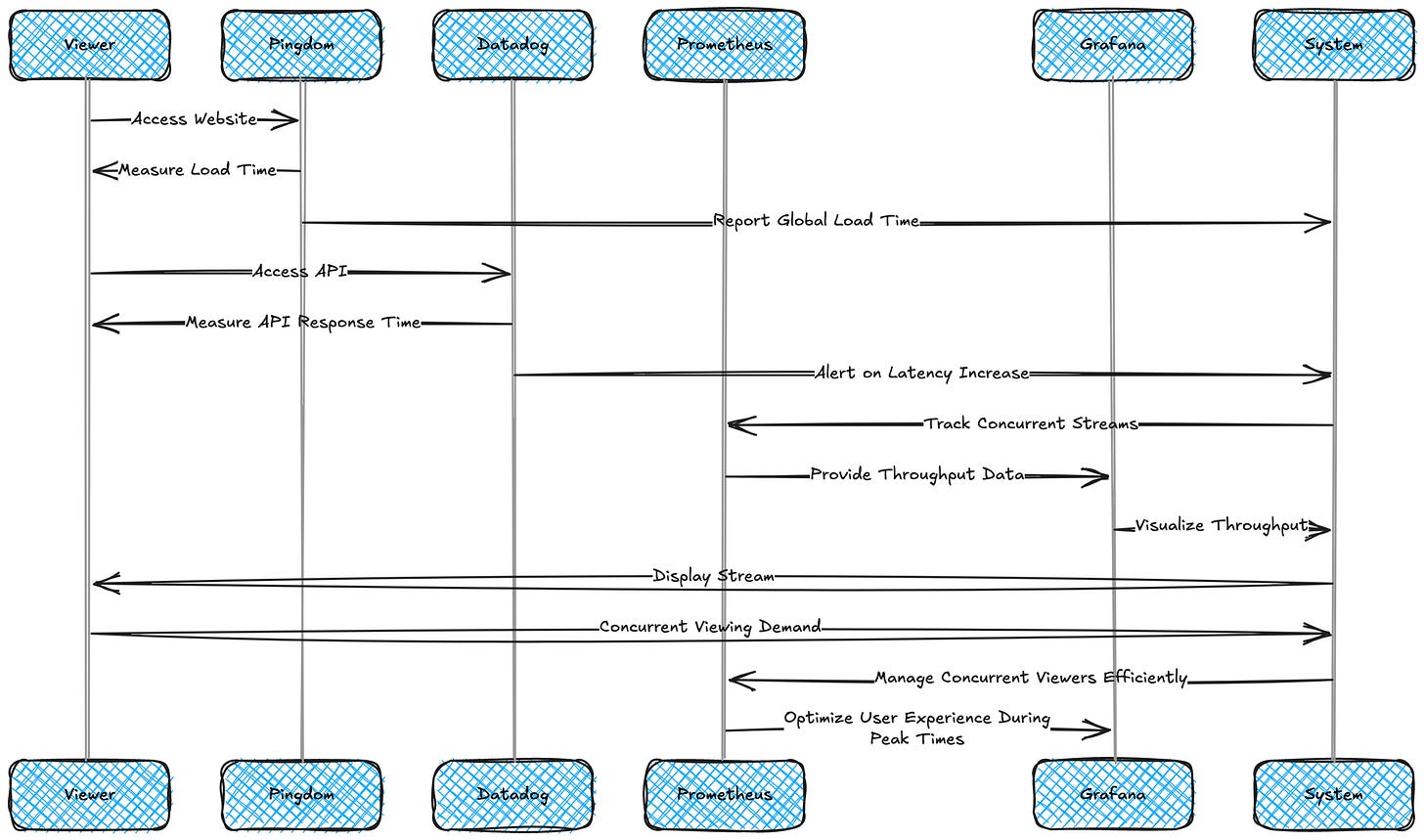

Platform Usage Example: Online Video Streaming Service
Scenario: A streaming service needs to ensure it handles many viewers simultaneously (throughput) and provides a smooth viewing experience (latency).
Latency Monitoring with Pingdom and Datadog:
Pingdom: Measures how long it takes for the streaming website to load fully from different locations. Helps identify if viewers are experiencing delays when accessing the service.
Datadog: Monitors API response times for streaming data requests. Alerts if latency increases, indicating potential issues in the streaming pipeline.
Throughput Monitoring with Grafana and Prometheus:
Prometheus: Collects metrics on the number of concurrent streams or requests per second. Tracks how many viewers are being served at any given moment.
Grafana: Visualizes throughput data, such as the number of streams being handled. Helps in understanding if the system is meeting the demand and scaling effectively during peak times.
